The Binatone TV Master MK IV was part of a series of early, affordable gaming systems that brought Pong-style games to home televisions. As one of the early consoles before the video game industry boom, it offered basic built-in games that provided endless fun for families.
Hardware Specifications
Processor: No CPU (discrete logic-based system using General Instrument AY-3-8500 chip)
Graphics: Monochrome output with basic on-screen objects and paddles
Memory: No RAM, games were built into the system
Storage: No removable storage (built-in games only)

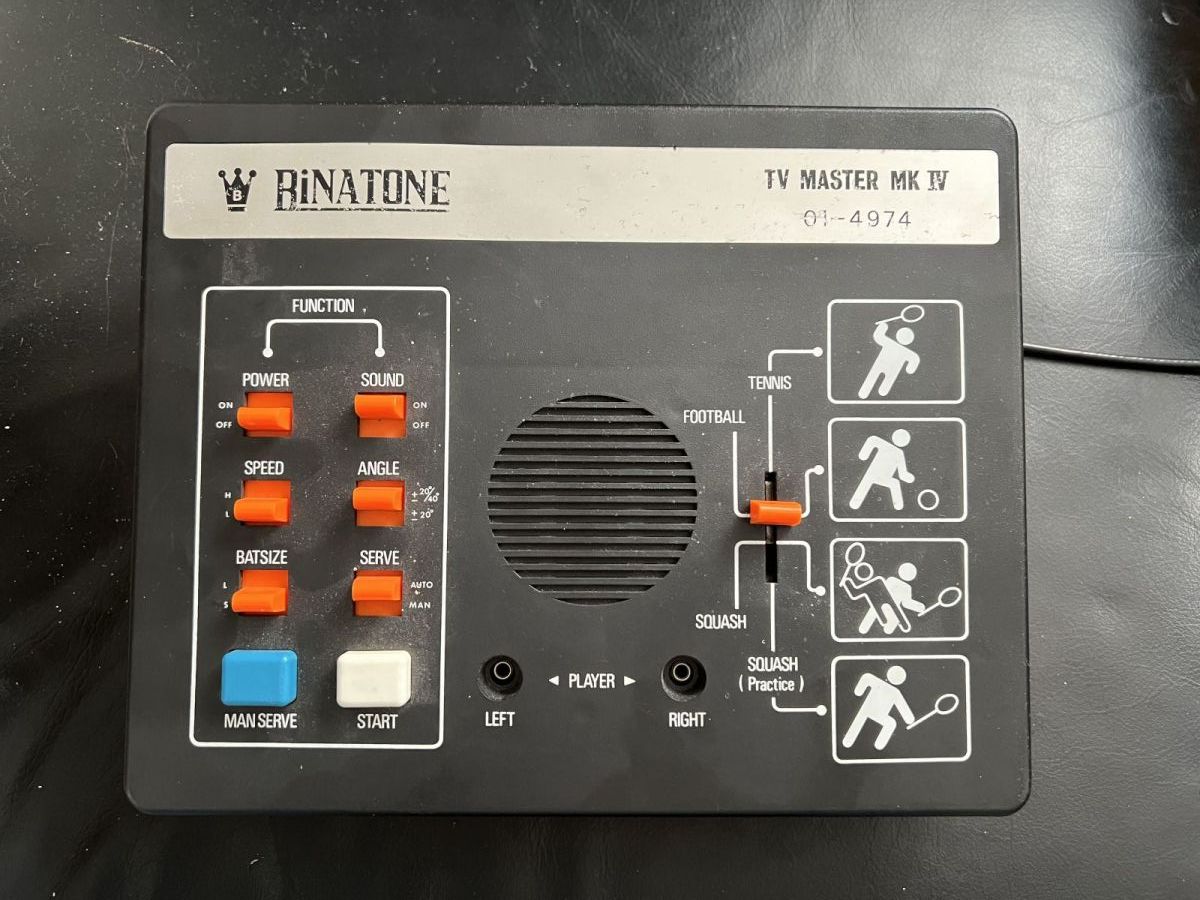

Games: 6 built-in Pong variants, including Tennis, Football, Squash, and 2-player and 1-player wall games

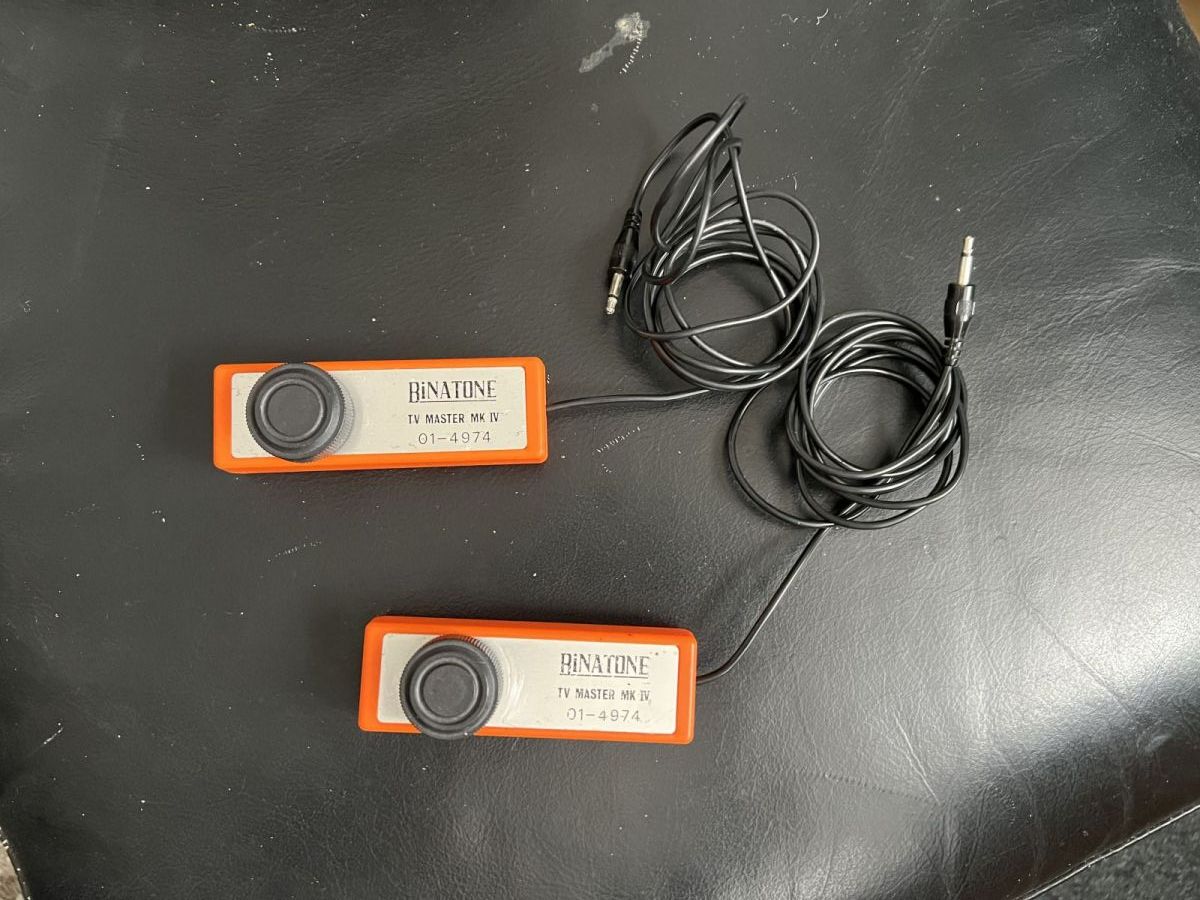

Controllers: Two built-in paddle controllers with rotary dials
Connectivity: RF output to connect to a TV
Original Release Date: 1977 (Original Design)
Discontinued: Unknown
Cost (New in 1977): £35
Cost (In 2024 Price): £200
Modifications I have performed

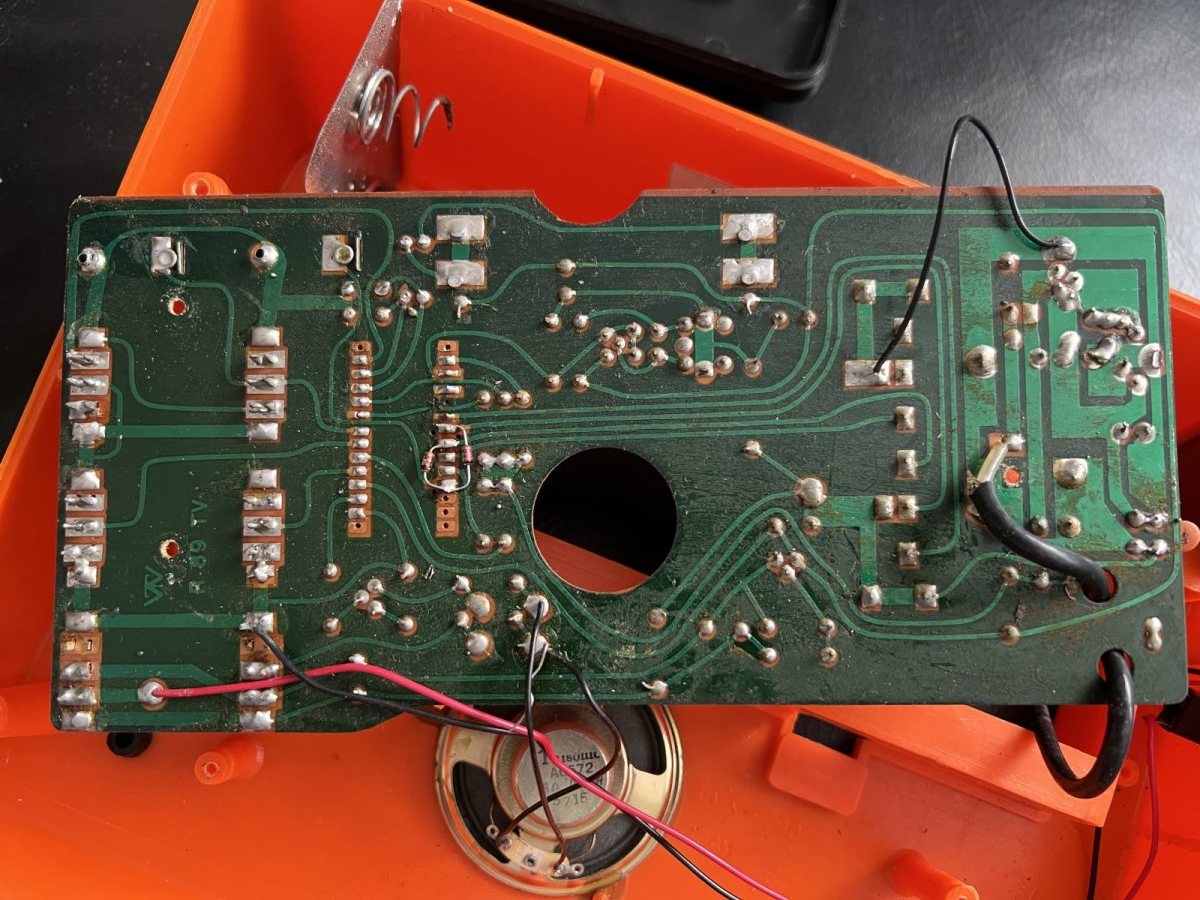

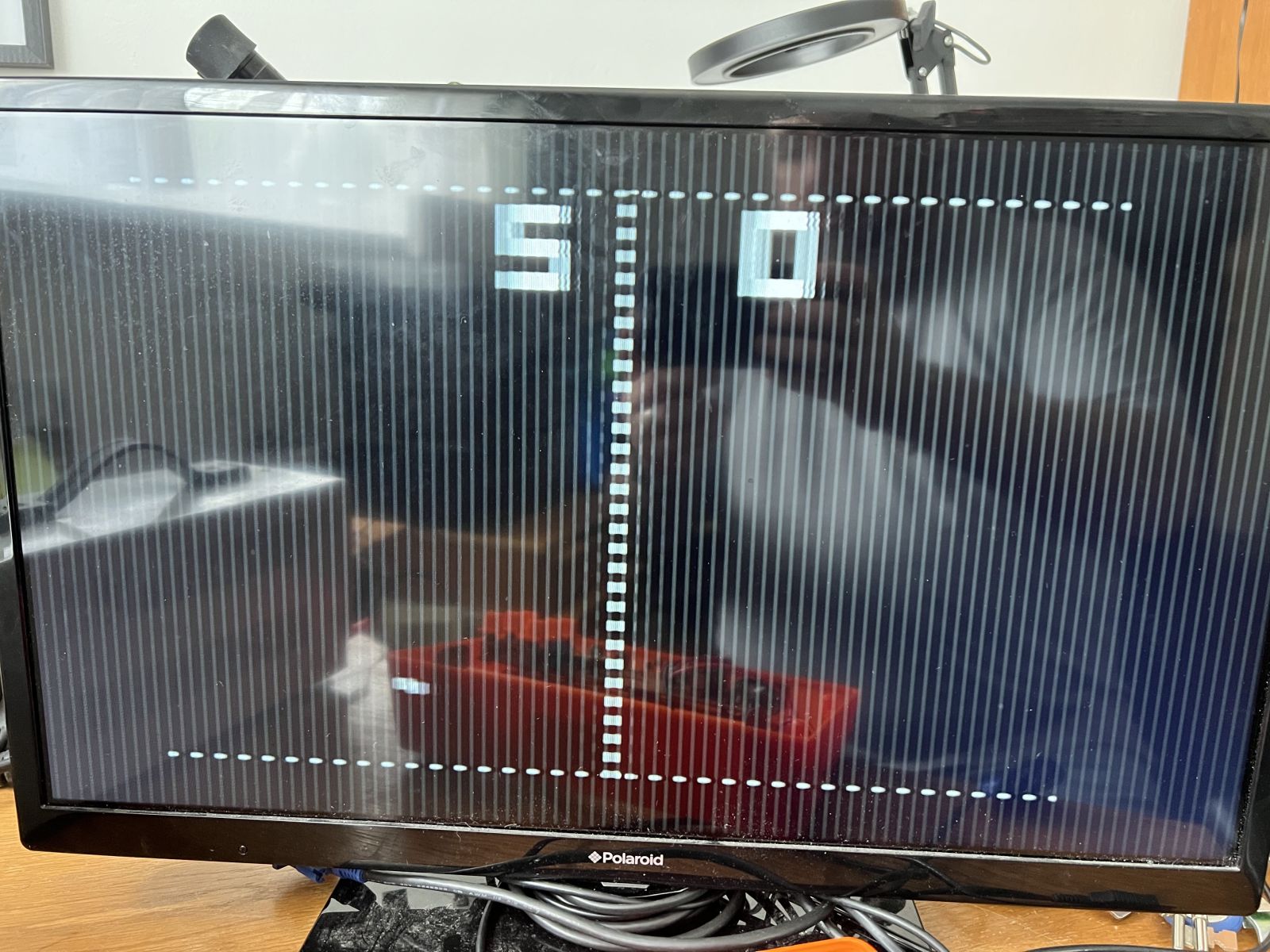

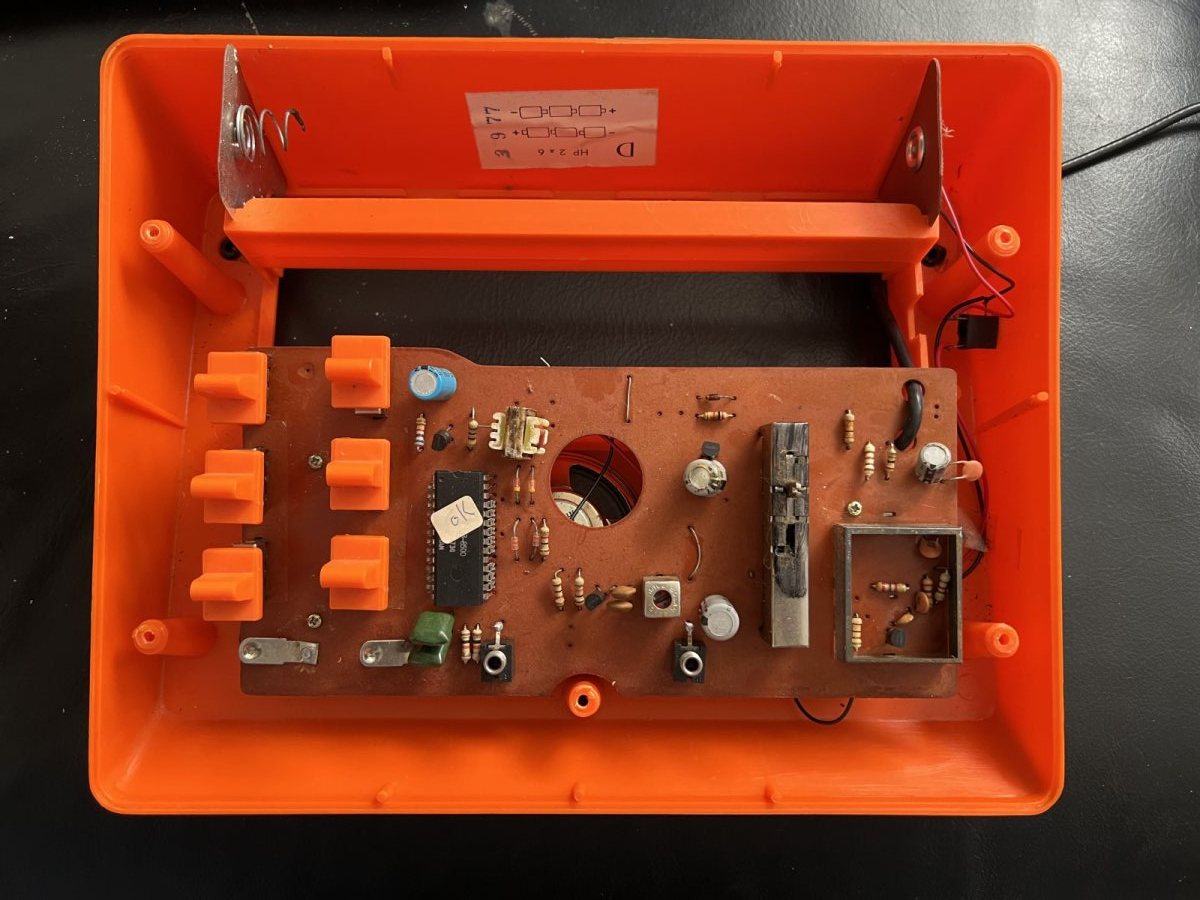

Changed RF to composite video output, cleaned the inside and recapped.
Added a modern regulated power supply.
Cost to me for computer £10.00
Cost to me for repairs and upgrades £6.50
